71016 | Rear Leaf Spring Bushings | GMC Jimmy 1983-2004

  • 71016 360image 1

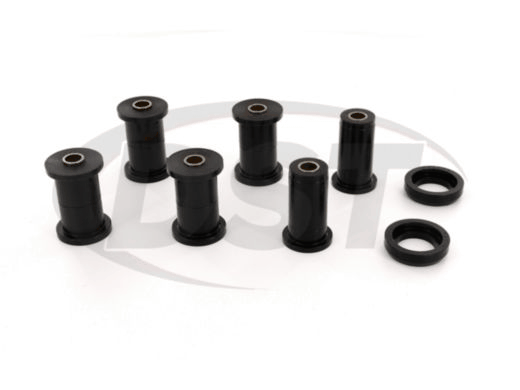

  • 71016 Rear Leaf Spring Bushings - 1.5 Inch Spring Eyes
  • 71016 Rear Leaf Spring Bushings - 1.5 Inch Spring Eyes
  • 71016 Rear Leaf Spring Bushings - 1.5 Inch Spring Eyes
  • 71016 Rear Leaf Spring Bushings - 1.5 Inch Spring Eyes
  • 71016 Rear Leaf Spring Bushings - 1.5 Inch Spring Eyes
  • 71016 360image large 1

Rear Leaf Spring Bushings - 1.5 Inch Spring Eyes

Manufacturer: Prothane
Part Number: 71016

:(?)
Black
Red
Price: $56.86

check_box In Stock check_box Ships Immediately


  • 2 of Super Grease - 19-1750-001
  • 6 of Metal Sleeve - 60536 (3/4 X .083 X 3.000 inches)
  • 8 of Rear Spring Bushings - 60310
  • 2 of Rear Frame Shackle Bushings - 61058
  • 2 of Thrust Washers - 61059
Suggested part for 71016: 191750
191750 Prothane Super Grease - 3 Pack
3 - 5ML High Performance Grease by Prothane

Suggested part for 71016: 191751
191751 Super Grease - 14 oz. Tube
14 Ounce Tube Suitable for Grease Guns

  • Lifetime Warranty. Prothane guarantees all Prothane Suspension Parts to be free of defects in materials and workmanship (not due to abuse, neglect or misapplication) for the total time the vehicle remains with the original purchaser of the product(s). Should the products fail to meet these conditions, Prothane will replace the product, free of charge. This excludes any and all related labor charges. The product must be shipped to Prothane (postage prepaid) along with a copy of the original receipt."
Cross Reference from 71016 to 3.2129
Energy Suspension 3.2129
Polyurethane.
Price: $66.24
Warranty: 7 Year Warranty

question_answer Ask us a Question

FitmentRear Leaf Spring Bushings - 1.5 Inch Spring Eyes 71016 fits these vehicles:

71016 | Rear Leaf Spring Bushings | GMC Jimmy 1983-2004

Footnotes
  • One Set Will Cover the Left and Right Side

Prothane Leaf Spring and Shackle Bushings

Vehicles with a leaf spring and shackle set up lean heavily on the springs to take the shock out of a bump. Not only does a leaf spring reduce the force of a bump that you feel, but it also evenly distributes the load across the chassis instead of the whole load pressing down on one point. Your ability to get to point A to point B without scraping the pavement is heavily dependent on the leaf spring and shackle bushings which mount the spring to the frame.

Prothane's polyurethane is a stronger material for the mounting points of a leaf spring and shackle. Polyurethane leaf spring bushings are able to handle the stress from the suspension and are not vulnerable to road grime. With Prothane's polyurethane, you can protect your vehicle's ability to carry a load, and your bumpy free ride, for years to come.

Prothane Bushing Box
Prothane Leaf Spring Bushings

Replacing the Faulty Rubber

O.E. leaf spring and shackles utilize a soft rubber bushing to mount the spring to the frame. The rubber is great for reducing the noise and vibrations from being transferred into the cab. Unfortunately, rubber bushings have a short lifespan. Once the rubber fails, due to wear and tear or road grime, a leaf spring's effectiveness is severely reduced. Meaning you will experience a very bumpy ride, the vehicle's ability to carry a load or tow is hindered greatly and you'll experience a loss of control.

Use Prothane's Super Grease

Leaf spring and shackle bushings handle a lot of stress from the vehicle load, so be sure to use the supplied Prothane's Super Grease to lubricate the bushings during installation. Its super important that you lubricate each bushing well to prevent any squeaking. If you'd like some extra grease just in case, pick up an extra 3 pack.

Prothane Package Grease
Prothane 71016

Product Reviews for 71016 | Rear Leaf Spring Bushings | GMC Jimmy 1983-2004

5 Star (2)
100%
4 Star (0)
0%
3 Star (0)
0%
2 Star (0)
0%
1 Star (0)
0%
starstarstarstarstar

Prothane 71016

5 out of 5 based on 2 user reviews. Write a Review

P
verified_user

starstarstarstarstar" Review 1 Year Later "

The units are working fine. It took a little shaving one end to get them started with the press, so they are extra tight.

verified_user Verified Buyer - - . Prothane 71016 - 5 out of 5
R
verified_user

starstarstarstarstar" they fit "

The rear spring bushings fit perfectly. I haven't got to the front yet but I'm sure they will be fine.

verified_user Verified Buyer - - . Prothane 71016 - 5 out of 5
Fitment for 71016

compare_arrows Compare with Similar Parts


This Part
71016 compare
$56.86
Energy Suspension
Energy Suspension compare
$66.24
($9.38) more expensive

question_answer Customer Questions and Answers


Question:
Can you buy pieces individually from this kit 71016?
Answer:
Prothane 71016 - does not sell individual pieces from their kits

Question:
Can you sell just the rear lower leaf spring bushings, not the shackle bushings out of kit 71016?
Answer:
No, we are not able to sell just part of the kit Prothane 71016.
