moog-st8533l | Front Coil Spring and Strut Assembly | Toyota Tacoma

  • moog-st8533l Front Coil Spring and Strut Assembly - Driver Side *While Supplies Last*

Front Coil Spring and Strut Assembly - Driver Side *While Supplies Last*

Manufacturer: MOOG
Part Number: moog-st8533l
Price: $132.30

check_box Free Shipping!check_box In Stock check_box Ships Immediately


  • Moog fulfills their warranty through their individual dealers. That means that in order to receive warranty support, you will have to refer back to the original dealer you purchased the part from. Be sure to check the dealer's warranty support before you buy the part to make sure that they will properly support the warranty. If a dealer will only refer you back to the manufacturer in order to receive warranty support, then you may not actually have any warranty at all.

    WARRANTY:

    Moog Premium Steering Components carry a Limited Lifetime Warranty. Moog R-Series Control Arms, Hub Assemblies, and Strut Assemblies carry a 3 Year Warranty.

    Moog warranties their parts to be free of defects in materials and/or workmanship during these timeframes as measured from the date of purchase.

    If a Moog part should fail due to materials or manufacturing defect while under warranty, we will provide a replacement of the part upon return of the defective part.

    Wearable RUBBER parts are not covered under warranty (Dust boots, bushings, bump stops, etc.)

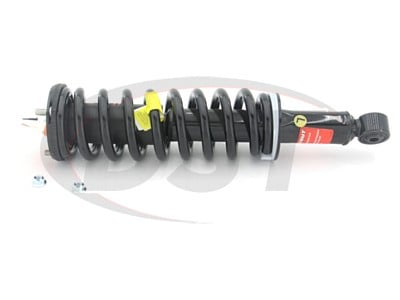

Cross Reference from moog-st8533l to monroe-171352l
Monroe monroe-171352l
.
Price: $121.76
Warranty:

question_answer Ask us a Question

FitmentFront Coil Spring and Strut Assembly - Driver Side *While Supplies Last* moog-st8533l fits these vehicles:
Details

moog-st8533l | Front Coil Spring and Strut Assembly | Toyota Tacoma

  • Fits 1998-2004 Toyota Tacoma RWD Pre Runner only.
  • Fits 2001-2004 Toyota Tacoma 2 door standard cab and extended cab only.

Moog's Coil Springs

Designed to be more than OE replacements, Moog's coil springs come with a variety of shapes and ends. This selection, combined with Moog's lifetime warranty handled right here at DST, lends security to whichever choice you might make. While they are certainly higher quality than the OE springs, each of Moog's coil springs were designed to still have the same spring rate. Having the same spring rate allows for an easier install and a more accurate restoration for your vehicle's ride.

End Type

Coil Springs have three types of ends: Square, Tangential and Pigtail. It is important that you select a coil spring that matches BOTH your end types, otherwise the coil spring won't fit. Your OE coil spring could have the same type ends, or a combination of both.

Moog Universal Coil Springs Squared

Type 1: Squared

With a Squared end, the final coil is bent back to touch the coil before it. The easiest way to know if you have a squared end is to stand the coil spring straight up. A squared end will let the spring sit flat on the ground and stay standing.

Type 2: Tangential

A Tangential end looks like it would just keep on going forever if the spring continued. The last coil is not bent back and it is not the pigtail (see below). Instead, the tangential coil spring looks as though a normal coil was just cut, otherwise, it would have kept winding on forever. If you tried to stand it up straight, it would fall.

Moog Universal Coil Springs Squared
Moog Universal Coil Springs Squared

Type 3: Pigtail

The Pigtail is probably the easiest to identify. Its defining characteristic is the pig tail shape at the end. The final coil is squared off, but is a much smaller diameter than the rest of the spring.

Spring Type

Moog offers two types of springs for a universal fitment: Constant Rate and Variable Rate.

Constant Rate

Moog Constant Rate coil springs return your vehicle to the original specifications. The rate at which the spring compresses and rebounds remains constant regardless of the amount of load on the spring. These coil springs are heat treated, have a weather resistant finish and use a urethane protective tube.

Moog Universal Coil Springs Bar Diameter
Moog Universal Coil Springs Bar Diameter

Variable Rate

Moog Variable Rate coil springs can be used as an original replacement or an upgrade to carry heavier loads. The resistance changes as the spring compresses, becoming progressively stiffer as the load on the springs increase. The springs include a "comfort range" with tightly spaced coils to give a smooth ride, and include a "load range" with widely spaced coils to minimize deflection and maintain chassis height when the vehicle load increases.

MOOG moog-st8533l

Product Reviews for moog-st8533l | Front Coil Spring and Strut Assembly | Toyota Tacoma

5 Star (4)
80%
4 Star (0)
0%
3 Star (0)
0%
2 Star (0)
0%
1 Star (1)
20%
starstarstarstarstar_border

MOOG moog-st8533l

4 out of 5 based on 5 user reviews. Write a Review

D
verified_user

starstar_borderstar_borderstar_borderstar_border" Look good but springs are so soft that the truck bottoms out. "

Springs are to soft.

verified_user Verified Buyer - - . MOOG moog-st8533l - 1 out of 5
S
verified_user

starstarstarstarstar" Good quality great price "

Fit and function are superb.

verified_user Verified Buyer - - . MOOG moog-st8533l - 5 out of 5
A
verified_user

starstarstarstarstar" Part fitted great. "

Excellent.

verified_user Verified Buyer - - . MOOG moog-st8533l - 5 out of 5
B
verified_user

starstarstarstarstar" Review 2 Years Later "

They held up on my 04 Tacoma through bad winters some medium off-roading and daily use. Id recommend it if you want your aged truck to feel newer.

verified_user Verified Buyer - - . MOOG moog-st8533l - 5 out of 5

compare_arrows Compare with Similar Parts


This Part
moog-st8533l compare
$132.30
Monroe
Monroe compare
$121.76
($10.54) cheaper
  • star_borderstar_borderstar_borderstar_borderstar_border

question_answer Customer Questions and Answers


Question:
I only see the driver side front spring and strut assembly available, how could I get the passenger side also or are they the same part?
Answer:
Moog no longer makes quick struts. We only have moog-st8533l driver side available. The passenger side moog-st8533r you might find at another Moog dealer. We offer Monroe products now.
