34.04mm Front Sway Bar Bushings | 2000-2013 Impala

  • moog-k201608 360image 1

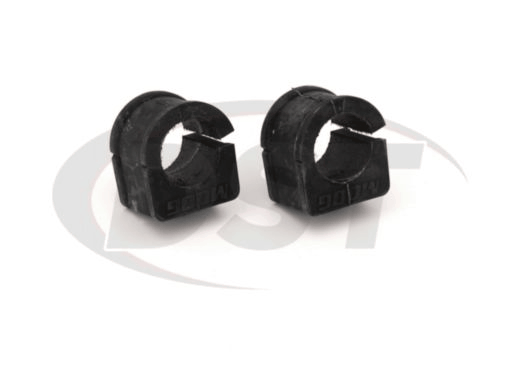

  • moog-k201608 Front Sway Bar Bushing Kit - 34.03mm (1.34 Inch)
  • moog-k201608 Front Sway Bar Bushing Kit - 34.03mm (1.34 Inch)
  • moog-k201608 Front Sway Bar Bushing Kit - 34.03mm (1.34 Inch)
  • moog-k201608 Front Sway Bar Bushing Kit - 34.03mm (1.34 Inch)
  • moog-k201608 Front Sway Bar Bushing Kit - 34.03mm (1.34 Inch)
  • moog-k201608 360image large 1

Front Sway Bar Bushing Kit - 34.03mm (1.34 Inch)

Manufacturer: MOOG
Part Number: moog-k201608
Price: $30.29

check_box In Stock check_box Ships Immediately


Suggested part for moog-k201608: dll133
dll133 Front Sway Bar Lateral Lock - 31-33mm
DST's lateral locks prevent sway bar movement and fits OE and aftermarket bars.

  • Moog fulfills their warranty through their individual dealers. That means that in order to receive warranty support, you will have to refer back to the original dealer you purchased the part from. Be sure to check the dealer's warranty support before you buy the part to make sure that they will properly support the warranty. If a dealer will only refer you back to the manufacturer in order to receive warranty support, then you may not actually have any warranty at all.

    Part of our warranty process includes reviewing evidence of the defect provided by the customer. This is easily accomplished by providing video or images of the defective part so our staff can verify the claim and move forward with the warranty process. This removes the necessity of shipping the part back to our facility at the customer's expense.

    WARRANTY:

    Moog Premium Steering Components carry a Limited Lifetime Warranty. Moog R-Series Control Arms, Hub Assemblies, and Knuckle Assemblies carry a 3 Year or 36,000 mile Warranty (whichever occurs first). And Moog CV Axles carry a 2 Year Warranty. Above warranties are based on customers who own a car, van, SUV or light truck (less than 8,000 lbs. or 3,625 kilograms).

    Moog warranties their parts to be free of defects in materials and/or workmanship during these timeframes as measured from the date of purchase.

    If a Moog part should fail due to materials or manufacturing defect while under warranty, we will provide a replacement of the part upon return of the defective part.

    Limited to ONE replacement during guarantee period

    Wearable RUBBER parts are not covered under warranty (Dust boots, bushings, bump stops, etc.)

question_answer Ask us a Question

FitmentFront Sway Bar Bushing Kit - 34.03mm (1.34 Inch) moog-k201608 fits these vehicles:

34.04mm Front Sway Bar Bushings | 2000-2013 Impala

34.04mm Front Sway Bar Bushings 2000-2013 Impala | 1997-2008 Grand Prix

These 34.04mm (1.34in) front sway bar bushings are Moog's Problem Solver Solution for squeaky, vulnerable OE bushings that require regular maintenance. Thanks to the Synthetic Fabric Liner on the inside of these front sway bar bushings you can enjoy a quiet ride without hearing that annoying squeak every time the grease wears, or washes, out of those original bushings.

*Some of the vehicles in these year models have a smaller front sway bar that requires 29.97mm or 20.32mm front sway bar bushings, so it's advised that you measure your sway bar before purchasing your bushings.

34.04mm front sway bar bushings chevy pontiac
worn down inner on a sway bar bushing

How Secure is Your Sway Bar?

The suspension bushings on your Chevy, Pontiac, or Buick are responsible for absorbing the bumps and jolts of everyday driving. This can take its toll on the sway bar bushings which helps keep the inside wheel in contact with the pavement during a hard turn. The original bushings need grease between the rubber and the bar to ease friction and this means they need to be maintained to work properly, but eventually, the bushing will wear down and need to be replaced.

If you like doing vehicle maintenance at home to save money, or just to know exactly what is being done, then you know it's nice to have parts that require little to no maintenance. When you have to replace those original bushings, why not use a more durable sway bar bushing that doesn't require maintenance? If that isn't enough, you can easily install Moog Problem Solver sway bar bushings right in your own garage or driveway.

Longer Lasting, Less Sqeaking

Moog's Problem Solver 34.04mm Front Sway Bar Bushings with a Synthetic Fabric Lining will improve the ride of several Chevy, Pontiac, and Buick vehicles that come with a 34mm front sway bar, like the 2014 Impala Limited, 2007 Monte Carlo, or the 2005 Century. The synthetic lining provides a greaseless barrier that eliminates squeaking without regular maintenance, which is nice if if you don't want annoying noises as you're cruising around downtown Fort Worth looking for parking near Texas De Brazil. These sway bar bushings also last 3 times longer than OE bushings thanks to that inner lining.

synthetic fabric lined 34mm front sway bar bushings
moog 34mm front sway bar bushings for impala and grand prix

Easy Install

Many rubber sway bar bushings can prove a hassle to install since the sway bar must be removed from the vehicle completely to slide the bushing onto the bar from the end. Moog has included a slit down the side of these sway bar bushings to make installation much easier. Simply remove the bracket, toss the old bushing, slip Moog's Synthetic Fabric Lined sway bar bushing onto the bar and tighten down the bracket. No need for messy grease upon install or later maintenance. This is one of the easiest Do It Yourself suspension projects you can take on.

Fitment for moog-k201608

All Vehicles: Enhanced over OE Design.

YearsMakeModelSubModelPositionDrive WheelNotes
1997 - 2005BuickCenturyFront To Frame1.34 Sway Bar Diameter
2005 - 2008BuickLaCrosseFront To Frame1.34 Sway Bar Diameter
1997 - 2004BuickRegalFront To Frame1.34 Sway Bar Diameter
2002 - 2007BuickRendezvousFront To Frame1.34 Sway Bar Diameter
2005 - 2006BuickTerrazaFront To FrameAWD
2014ChevroletImpala LimitedFront To Framewith FE3 SPORT Suspension
2015ChevroletImpala LimitedLS, LT, LTZFront To Framewith FE3 SPORT Suspension
2016ChevroletImpala LimitedLS, LT, LTZ, PoliceFront To Framewith FE3 SPORT Suspension
2000 - 2011ChevroletImpalaFront To Frame1.34 Sway Bar Diameter
2012 - 2013ChevroletImpalaFront To Framewithout FE2 Suspension
2000 - 2007ChevroletMonte CarloFront To Frame1.34 Sway Bar Diameter
2005 - 2006ChevroletUplanderFront To FrameAWD
1997 - 2005ChevroletVentureFront To Frame1.34 Sway Bar Diameter
1998 - 2002OldsmobileIntrigueFront To Frame1.34 Sway Bar Diameter
1997 - 2004OldsmobileSilhouetteFront To Frame1.34 Sway Bar Diameter
2001 - 2005PontiacAztekFront To Frame1.34 Sway Bar Diameter
1997 - 2003PontiacGrand PrixFront To Frame1.34 Sway Bar Diameter
2004 - 2008PontiacGrand PrixFront To Frame34 Sway Bar Diameter
1999 - 2004, 2006PontiacMontanaFront To Frame1.34 Sway Bar Diameter
2005PontiacMontanaSV6Front To Frame1.34 Sway Bar Diameter
1997 - 1998PontiacTrans SportFront To Frame1.34 Sway Bar Diameter
2005 - 2006SaturnRelayFront To FrameAWD

Canada Market Only (vehicles not sold in USA):

YearsMakeModelPositionNotes
2005 - 2008BuickAllureFront To Frame1.34 Sway Bar Diameter
1999PontiacTrans SportFront To Frame1.34 Sway Bar Diameter

Canada / Mexico Market Only (vehicles not sold in USA):

YearsMakeModelPositionNotes
2007PontiacMontanaFront To Frame1.34 Sway Bar Diameter
GradePremium
OEM part numbers MOOG K201608 replaces

MOOG K201608 is an aftermarket replacement part. It replaces the original equipment part numbers listed below for the vehicles this part fits. It is not a genuine manufacturer part, and the numbers below are shown for identification only.

Vehicle manufacturerOEM part number replaced
General Motors10275555
General Motors10403188

It also replaces these original equipment service part numbers.

Service brandService part number replaced
ACDelco45G1565
