Front CV Axle Assembly-Driver Side | Pontiac Vibe (2009-2010) | Toyota Corolla (2009-2019) | Toyota Matrix (2003-2013)
MOOG's CV Axle Assembly

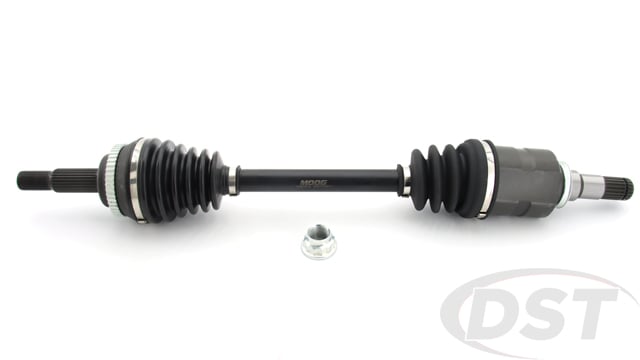

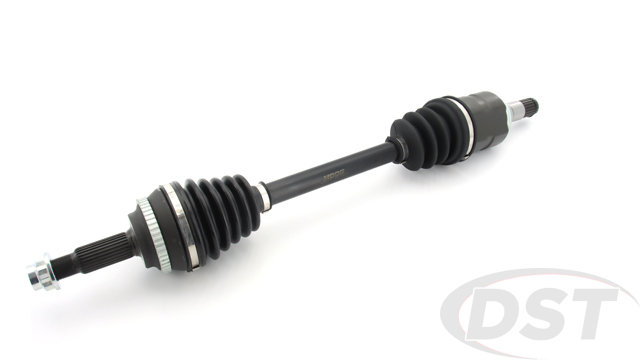

The Front CV Axle Assembly (MOOG-14E003L) transfers power from the transmission to the wheels, allowing the vehicle to move, turn, and stop smoothly. It is compatible with Pontiac Vibe (2009-2010), Toyota Corolla (2009-2019), and Toyota Matrix (2003-2013). As part of MOOG's Problem Solver line, this axle assembly is engineered to address common wear issues found in factory components, helping deliver consistent power, improved durability, and reliable handling for everyday driving.
Detecting Axle Issues
Recognizing a failing front CV axle can involve several clear warning signs. One common indicator is visible grease leaking from the axle boot onto the tire or around other suspension parts. A worn CV axle can negatively affect steering and handling, often leading to increased vibration and noise throughout the suspension system. Other signs of axle failure include clicking or popping sounds when turning or accelerating while driving. Overall, a damaged CV axle can significantly reduce driving comfort by causing poor handling, intense vibrations, and excessive noise.
Smooth & Durable Performance

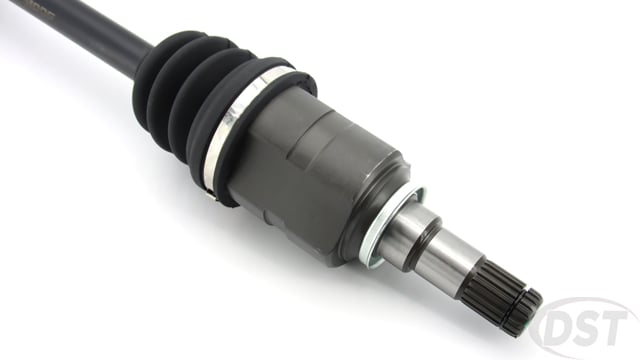

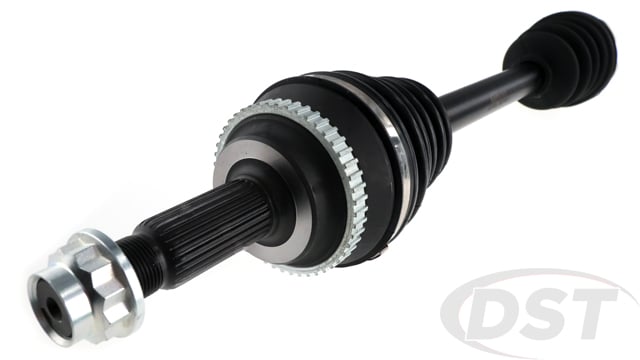

The Front CV Axle Assembly uses inner and outer CV joints to send power from the transmission to the front wheels while allowing the suspension and steering to move freely. When it's replaced, drivers usually notice less noise, less vibration, and smoother steering. The MOOG CV axle is built to last, with heat-treated bearings and housings that help keep it strong. It also has rust protection, including a coating on the intermediate shaft and both inner and outer housings, so it can handle harsh weather conditions.
Upgrade your Ride!
It may be time to replace your CV axle if your steering feels stiff, you hear clicking when turning, or you notice grease leaking. The MOOG-14E003L Axle Assembly is a durable, long-lasting product designed to ensure smooth power delivery, improve steering, and reduce future drivetrain wear.
| Overview | |
|---|---|
| Grade | Premium |
| Dimensions | |
|---|---|
| Compressed Length | 646mm (25.43 in) |
| Studs, threads & splines | |
|---|---|
| Inboard Spline Quantity | 20 |
| Outboard Spline Quantity | 26 |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22×1.5 |
| Materials, color & finish | |
|---|---|
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| What's included | |
|---|---|
| ABS Tone Ring Included | Yes |
| Axle Nut Included | Yes |
