• 11017 Front and Rear Greaseable Main Spring Eye Bushings
  • 11017 Front and Rear Greaseable Main Spring Eye Bushings

Front and Rear Greaseable Main Spring Eye Bushings

Manufacturer: Prothane
Part Number: 11017
Rating 33 Reviews

Options


Black
Red
Quantity:
Price: $93.57

In Stock Ships Immediately


Details

Front Leaf Spring Bushings - Jeep Wrangler YJ - 11017

length outer diameter length fastener bolt diameter
63.10mm
2-31/64 inches
38.50mm
1-33/64 inches
76.20mm
3 inches
14.29mm
9/16 inch
here is our complete list of universal bushings.
Footnotes
  • One Set Will Cover the Left and Right Side
FitmentFront and Rear Greaseable Main Spring Eye Bushings 11017 fits these vehicles:

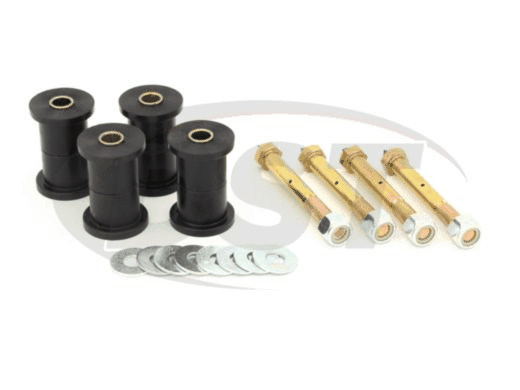

  • 4 of Super Grease - 19-1750-001
  • 4 of Grease Fitting Bolts - 69GF (9/16- 12 X 4 1/2 inches)
  • 4 of Nylon Lock - 73 (9/16-12 inches)
  • 4 of Metal Sleeves - 60536-D (3/4 X .083 X 3.000 inches)
  • 8 of Hat Bushings - 60310
  • 8 of Metal Washers - 1153 (1/2 X 1 3/8 X 7/64 inches)
  • Lifetime Warranty. Prothane guarantees all Prothane Suspension Parts to be free of defects in materials and workmanship (not due to abuse, neglect or misapplication) for the total time the vehicle remains with the original purchaser of the product(s). Should the products fail to meet these conditions, Prothane will replace the product, free of charge. This excludes any and all related labor charges. The product must be shipped to Prothane (postage prepaid) along with a copy of the original receipt."

Prothane Leaf Spring and Shackle Bushings

Vehicles with a leaf spring and shackle set up lean heavily on the springs to take the shock out of a bump. Not only does a leaf spring reduce the force of a bump that you feel, but it also evenly distributes the load across the chassis instead of the whole load pressing down on one point. Your ability to get to point A to point B without scraping the pavement is heavily dependent on the leaf spring and shackle bushings which mount the spring to the frame.

Prothane's polyurethane is a stronger material for the mounting points of a leaf spring and shackle. Polyurethane leaf spring bushings are able to handle the stress from the suspension, and is not vulnerable to road grime. With Prothane's polyurethane, you can protect your vehicle's ability to carry a load, and your bumpy free ride, for years to come.

Prothane Bushing Box

Prothane Leaf Spring Bushings

Replacing the Faulty Rubber

O.E. leaf spring and shackles utilize a soft rubber bushing to mount the spring to the frame. The rubber is great for reducing the noise and vibrations from being transferred into the cab. Unfortunately, rubber bushings have a short lifespan. Once the rubber fails, due to wear and tear or road grime, a leaf spring's effectiveness is severely reduced. Meaning you will experience a very bumpy ride, the vehicle's ability to carry a load or tow is hindered greatly and you'll experience a loss of control.


Use Prothane's Super Grease

Leaf spring and shackle bushings handle a lot of stress from the vehicle load, so be sure to use the supplied Prothane's Super Grease to lubricate the bushings during installation. Its super important that you lubricate each bushing well to prevent any squeaking. If you'd like some extra grease just in case, pick up an extra 3 pack.

Prothane Package Grease
Prothane 11017

Product Reviews for Front Leaf Spring Bushings 11017

Prothane 11017



5 out of 5 based on 33 user reviews. Write a Review

no problems, work just great, jeep sees some serious trails.
5 out of 5 - Review 2 Years Later
william m worthy - . Prothane 11017

Product Reviews for Prothane Front Leaf Spring Bushings

They seem to be holding up well, they do squeak when they get dry and Im not sure what is the proper lube too use on them, would appreciate any suggestions. thank you David Editors Note: You would need to use the Prothane Super Grease.It is available in the 14oz tube for a grease gun or 3 1/2oz tubes.
5 out of 5 - Review 2 Years Later
David Costa - . Prothane 61010
It really helped with the stability and overall feel of the truck.
5 out of 5 - great product !
Javier Picos - . Prothane 61025
I only had one problem. One of the sleeves seemed like it was not machined right. The bolt would only go half way through and then stop. I tried different bolts to make sure that wasnt the problem, but still had the same problem. Instead of sending it back and having my vehicle down for a week, I just went and bought a bolt a little smaller in diameter and it worked fine.
4 out of 5 - Would buy from them again.
Maggie Mckenzie - . Prothane 91001
My F 250 drives like new again.
5 out of 5 - Very Satisfied with parts and fitting was very good.
Alan King - . Prothane 61025
Make sure you use the provided grease!
5 out of 5 - Nice bushings
Isaac T. Dillard - . Prothane 71009
Came with everything I needed. Went together like it should. Was a perfect fit for my scout. Seems like high quality pieces.
5 out of 5 - good product
Rob Goodman - . Prothane 91002
Still love the feel these bushings give through the wheel, though I dont get to drive the 1965 scout as much as I would like, I am most confident I will get years of good service from the bushings
5 out of 5 - Review 1 Year Later
grant daniel - . Prothane 91002
Still love the feel these bushings give through the wheel, though I dont get to drive the 1965 scout as much as I would like, I am most confident I will get years of good service from the bushings
5 out of 5 - Review 1 Year Later
grant daniel - . Prothane 91002
Came with everything I needed. Went together like it should. Was a perfect fit for my scout. Seems like high quality pieces.
5 out of 5 - good product
Rob Goodman - . Prothane 91002
No issues. I would and will recommend these to others.
5 out of 5 - Very Good
Gregory E. Sample - . Prothane 41005
