Universal Polyurethane Bushings

Universal Bushing Dimensions video thumbnail Universal Bushing Dimensions

Universal Flange Type Bushings from two of the leading manufacturer's of polyurethane bushings: Energy Suspension and Prothane. These universal bushings can be used for a variety of applications such as:

  • Control Arm Bushings
  • Track Rod Bushings
  • 4-Bar Systems
  • Tire Carrier Racks
  • Engine Mounts
  • Transmission Mounts
  • and many more

Fits many of the more common 4 Bar systems. These are typically found in hot rods, custom rods and many of the older American vehicles. But these aren't limited to just vehicles, they can fit any need you have!

If you're looking for a heavy duty bushing with high tensile strength and tear resistance then check out our Kevlar-Infused Polyurethane Bushings.

Each set includes 4 bushings halves and 2 metal sleeves.


Part Image Outer Diameter (Bushing) Inner Diameter (Bushing) Length (Outer Tube) Length (Inner Sleeve) Fastener Bolt Diameter

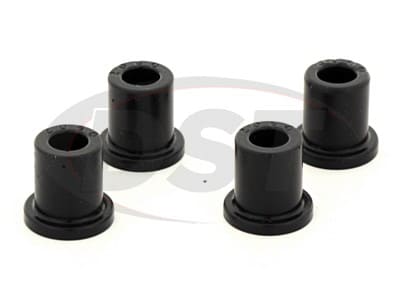

9.9176 Flange Bushing Kit - 9.9176 MM: 22.12
INCH: 7/8 (0.871)
MM: 12.70
INCH: 0.50
MM: 50.8
INCH: 2 (2.00)
No Sleeve Included MM: 12.70
INCH: 1/2 (0.50)

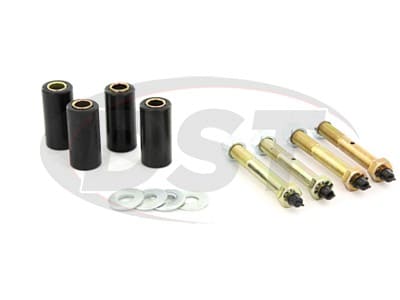

11015 Flange Bushing Kit - 11015 MM: 22.23
INCH: 7/8 (0.87)
MM: 14.50
INCH: 0.571
MM: 46.83
INCH: 1-27/32 (1.84)
MM: 46.83
INCH: 1-27/32 (1.84)
MM: 11.11
INCH: 7/16 (0.43)

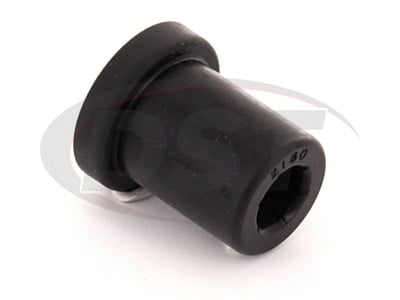

Bulk-2180 Flange Bushing - bulk-2180 MM: 25.27
INCH: 0.995
MM: 12.91
INCH: 0.508
MM: 38.65
INCH: 1.52
*Does not include sleeve *Does not include sleeve

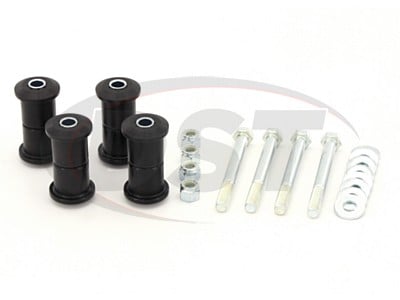

1814 Flange Bushing Kit - 1814 MM: 25.40
INCH: 1 (1.00)
MM: 12.75
INCH: 0.502
MM: 50.80
INCH: 2 (2.00)
MM: 69.85
INCH: 2-3/4 (2.75)
MM: 09.53
INCH: 3/8 (0.37)

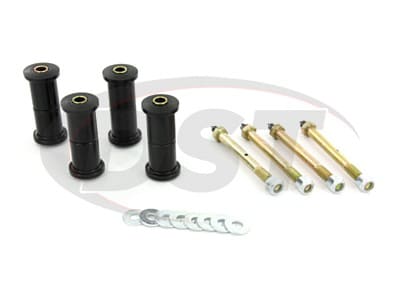

1815 Flange Bushing Kit - 1815 MM: 25.40
INCH: 1 (1.00)
MM: 12.81
INCH: 0.505
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 76.99
INCH: 3-1/32 (3.03)
MM: 09.53
INCH: 3/8 (0.37)

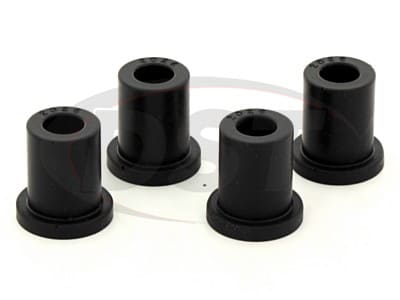

9.9177 Flange Bushing Kit - 9.9177 MM: 25.654
INCH: 1.010
MM: 14.30
INCH: 0.563
MM: 63.50
INCH: 2-1/2 (2.50)
No Sleeve Included MM: 14.5
INCH: 9/16 (0.57)

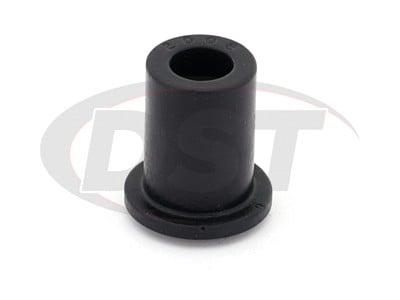

Bulk-2008 Flange Bushing - bulk-2008 MM: 27.96
INCH: 1.1
MM: 15.91
INCH: 0.626
MM: 43.89
INCH: 1.728
MM: 89.07
INCH: 3.5
*When used with 15.10.28.39
MM: 11
INCH: 0.433
*When used with 15.10.28.39

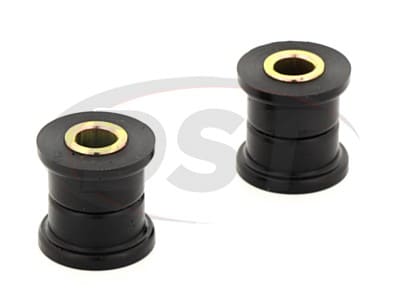

19601 Flange Bushing Kit - 19601 MM: 28.58
INCH: 1-1/8 (1.12)
MM: 19.11
INCH: 0.753
MM: 25.40
INCH: 1 (1.00)
MM: 36.51
INCH: 1-7/16 (1.43)
MM: 12.70
INCH: 1/2 (0.50)

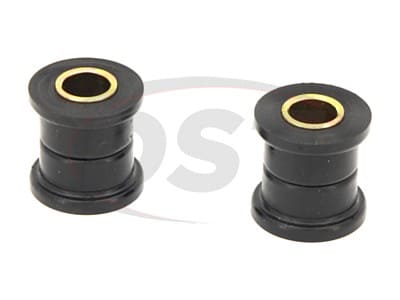

19602 Flange Bushing Kit - 19602 MM: 28.58
INCH: 1-1/8 (1.12)
MM: 19.20
INCH: 0.756
MM: 25.40
INCH: 1 (1.00)
MM: 36.51
INCH: 1-7/16 (1.43)
MM: 14.29
INCH: 9/16 (0.56)

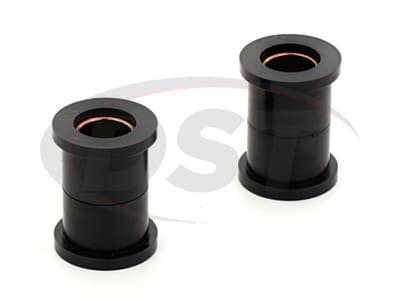

19612 Flange Bushing Kit - 19612 MM: 28.58
INCH: 1-1/8 (1.12)
MM: 20.83
INCH: 0.820
MM: 38.10
INCH: 1-1/2 (1.50)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 15.88
INCH: 5/8 (0.62)

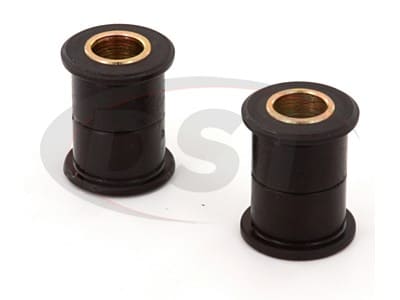

9.9111 Flange Bushing Kit - 9.9111 MM: 29.37
INCH: 1-5/32 (1.14)
MM: 20.62
INCH: 0.812
MM: 38.10
INCH: 1-1/2 (1.50)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 15.88
INCH: 5/8 (0.62)
9.9106 Flange Bushing Kit - 9.9106 MM: 29.37
INCH: 1-5/32 (1.15)
MM: 19.05
INCH: 0.75
MM: 26.19
INCH: 1-1/32 (1.03)
MM: 34.93
INCH: 1-3/8 (1.37)
MM: 14.29
INCH: 9/16 (0.56)
9.9105 Flange Bushing Kit - 9.9105 MM: 29.37
INCH: 1-5/32 (1.16)
MM: 19.05
INCH: 0.75
MM: 26.99
INCH: 1-1/16 (1.06)
MM: 35.72
INCH: 1-13/32 (1.41)
MM: 12.70
INCH: 1/2 (0.50)

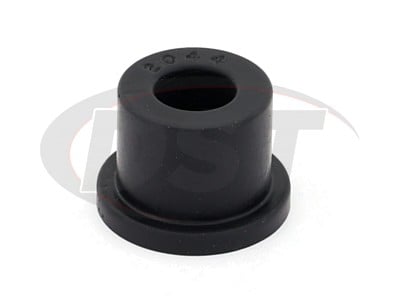

Bulk-2044 Flange Bushing - bulk-2044 MM: 30.21
INCH: 1.189
MM: 15.65
INCH: 0.616
MM: 26.66
INCH: 1.05
MM: 60.32
INCH: 2.375
*When used with 15.10.13.39
MM: 12.70
INCH: 0.50
*When used with 15.10.13.39

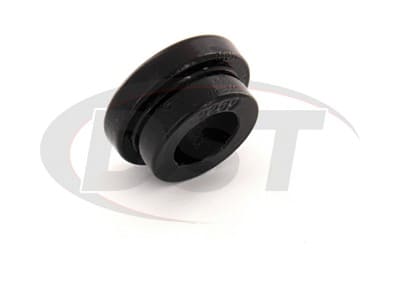

Bulk-2269 Flange Bushing - bulk-2269 MM: 30.83
INCH: 1.213
MM: 19.37
INCH: 0.763
MM: 18.56
INCH: 0.731
*Does not include sleeve *Does not include sleeve

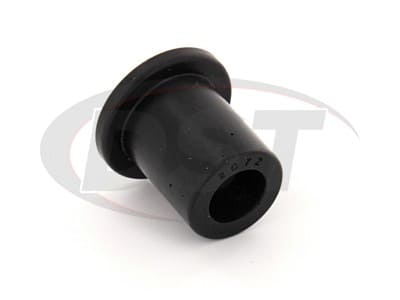

Bulk-2072 Flange Bushing - bulk-2072 MM: 31.66
INCH: 1.246
MM: 18.97
INCH: 0.747
MM: 41.96
INCH: 1.652
MM: 85.9
INCH: 3.375
*When used with 15.10.36.39
MM: 14.18
INCH: 0.56
*When used with 15.10.36.39
9.9107 Flange Bushing Kit - 9.9107 MM: 31.75
INCH: 1-1/4 (1.25)
MM: 19.05
INCH: 0.75
MM: 33.34
INCH: 1-5/16 (1.31)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 12.70
INCH: 1/2 (0.50)
9.9108 Flange Bushing Kit - 9.9108 MM: 31.75
INCH: 1-1/4 (1.25)
MM: 19.05
INCH: 0.75
MM: 33.34
INCH: 1-5/16 (1.31)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 14.29
INCH: 9/16 (0.56)

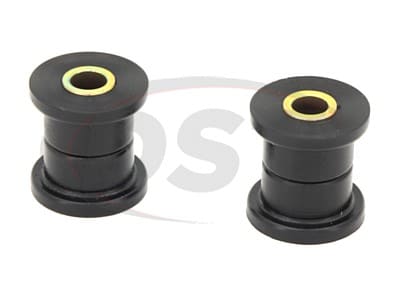

19603 Flange Bushing Kit - 19603 MM: 31.75
INCH: 1-1/4 (1.25)
MM: 19.14
INCH: 0.754
MM: 31.75
INCH: 1-1/4 (1.25)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 12.70
INCH: 1/2 (0.50)

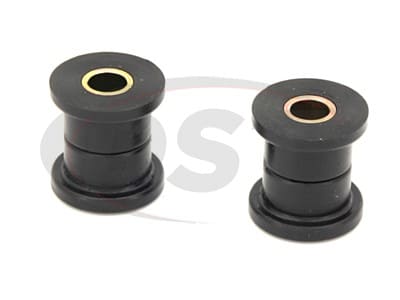

19604 Flange Bushing Kit - 19604 MM: 31.75
INCH: 1-1/4 (1.25)
MM: 18.97
INCH: 0.747
MM: 31.75
INCH: 1-1/4 (1.25)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 14.29
INCH: 9/16 (0.56)

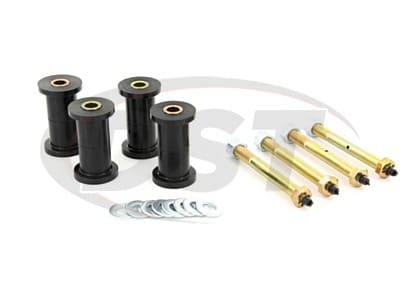

1816 Flange Bushing Kit - 1816 MM: 31.75
INCH: 1-1/4 (1.25)
MM: 19.07
INCH: 0.751
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 76.20
INCH: 3 (3.00)
MM: 12.70
INCH: 1/2 (0.50)

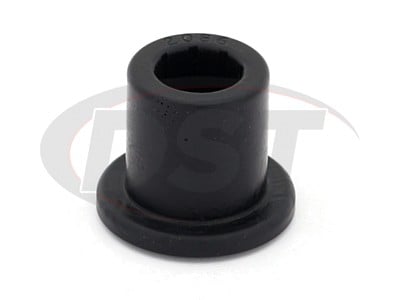

Bulk-2086 Flange Bushing - bulk-2086 MM: 31.83
INCH: 1.25
MM: 19.69
INCH: 0.77
MM: 30.3
INCH: 1.192
MM: 44.25
INCH: 1.74
MM: 12.7
INCH: 0.5
2.2120 Flange Bushing Kit - 2.2120 MM: 32.03
INCH: 1 1/4 (1.26)
MM: 19
INCH: 3/4 (0.754)
MM: 62.76
INCH: 2 15/32 (2.475)
MM: 78.42
INCH: 3 3/32 (3.088)
MM: 12.9
INCH: 1/2 (0.508)

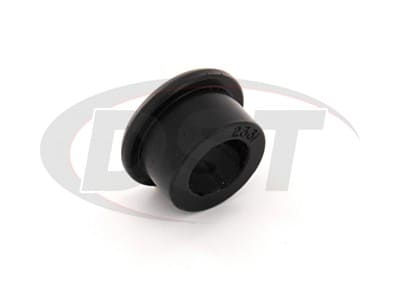

Bulk-2331 Flange Bushing - bulk-2331 MM: 33.65
INCH: 1.325
MM: 20.62
INCH: 0.812
MM: 21.79
INCH: 0.858
MM: 44.52
INCH: 1.75
*When used with 15.10.199.39
MM: 15.95
INCH: 0.63
*When used with 15.10.199.39

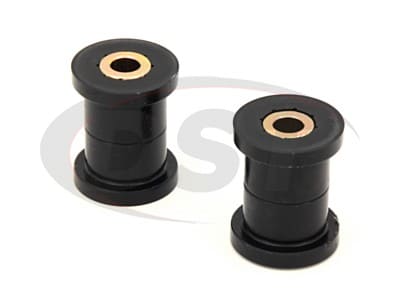

9.9482 Flange Bushing Kit - 9.9482 MM: 34.93
INCH: 1-3/8 (1.37)
MM: 22.22
INCH: 0.875
MM: 42.07
INCH: 1-21/32 (1.65)
MM: 57.15
INCH: 2-1/4 (2.25)
MM: 12.70
INCH: 1/2 (0.50)

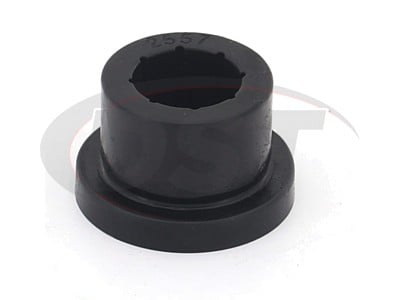

Bulk-2557 Flange Bushing - bulk-2557 MM: 35.15
INCH: 1.384
MM: 22.31
INCH: 0.878
MM: 28.13
INCH: 1.11
MM: 57.32
INCH: 2.257
*When used with 15.10.360.39
MM: 12.65
INCH: 0.5
*When used with 15.10.360.39

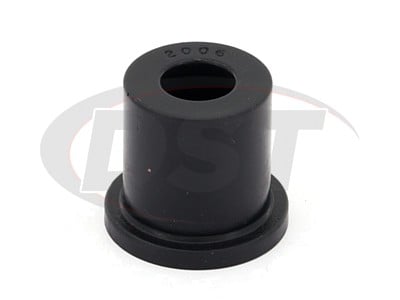

Bulk-2006 Flange Bushing - bulk-2006 MM: 38.01
INCH: 1.5
MM: 18.83
INCH: 0.741
MM: 42.42
INCH: 1.67
*Does not include sleeve *Does not include sleeve

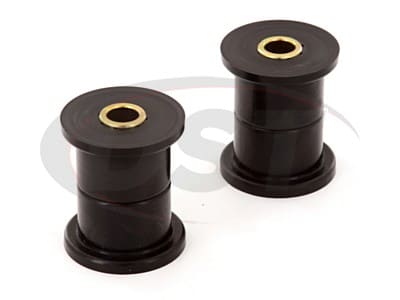

9.9483 Flange Bushing Kit - 9.9483 MM: 38.10
INCH: 1-1/2 (1.50)
MM: 19.05
INCH: 0.75
MM: 50.01
INCH: 1-31/32 (1.96)
MM: 60.33
INCH: 2-3/8 (2.37)
MM: 12.70
INCH: 1/2 (0.50)

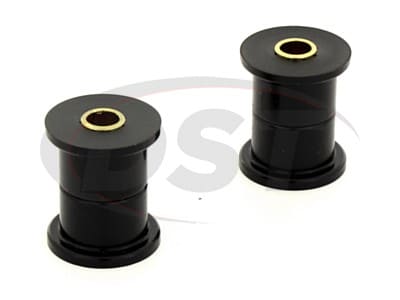

9.9489 Flange Bushing Kit - 9.9489 MM: 38.10
INCH: 1-1/2 (1.50)
MM: 19.05
INCH: 0.75
MM: 50.01
INCH: 1-31/32 (1.96)
MM: 60.33
INCH: 2-3/8 (2.37)
MM: 14.29
INCH: 9/16 (0.56)

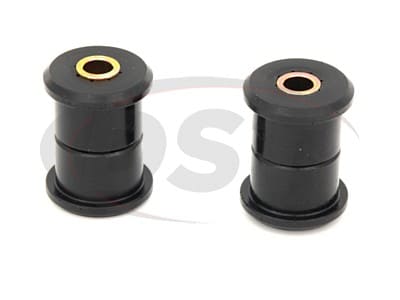

19605 Flange Bushing Kit - 19605 MM: 38.10
INCH: 1-1/2 (1.50)
MM: 19.35
INCH: 0.752
MM: 50.80
INCH: 2 (2.00)
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 12.70
INCH: 1/2 (0.50)

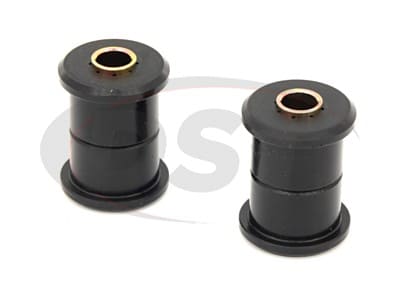

19606 Flange Bushing Kit - 19606 MM: 38.10
INCH: 1-1/2 (1.50)
MM: 19.17
INCH: 0.755
MM: 50.80
INCH: 2 (2.00)
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 14.29
INCH: 9/16 (0.56)

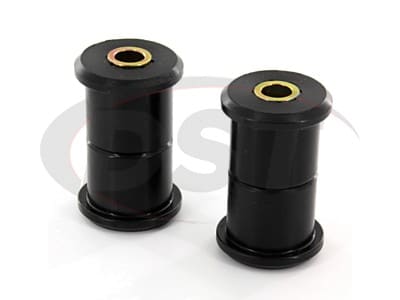

19607 Flange Bushing Kit - 19607 MM: 38.10
INCH: 1-1/2 (1.50)
MM: 18.99
INCH: 0.748
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 76.20
INCH: 3 (3.00)
MM: 12.70
INCH: 1/2 (0.50)

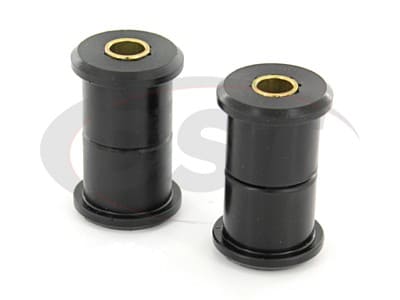

19608 Flange Bushing Kit - 19608 MM: 38.10
INCH: 1-1/2 (1.50)
MM: 19.23
INCH: 0.757
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 76.20
INCH: 3 (3.00)
MM: 14.29
INCH: 9/16 (0.56)

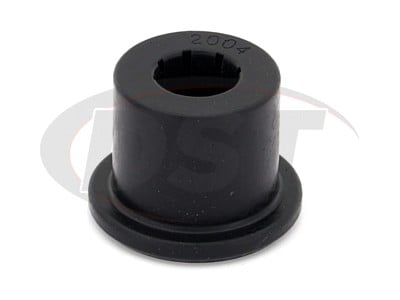

Bulk-2004 Flange Bushing - bulk-2004 MM: 38.28
INCH: 1.51
MM: 18.98
INCH: 0.747
MM: 37.28
INCH: 1.467
MM: 76.17
INCH: 3
*When used with 15.10.08.39
MM: 14.35
INCH: 0.562
*When used with 15.10.08.39

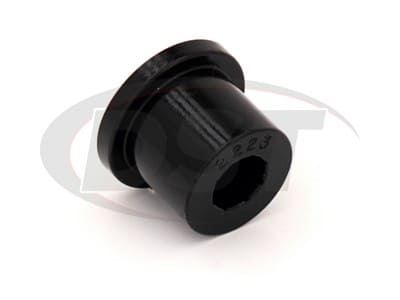

Bulk-2223 Flange Bushing - bulk-2223 MM: 38.32
INCH: 1.509
MM: 19.56
INCH: 0.77
MM: 37.19
INCH: 1.464
*Does not include sleeve *Does not include sleeve

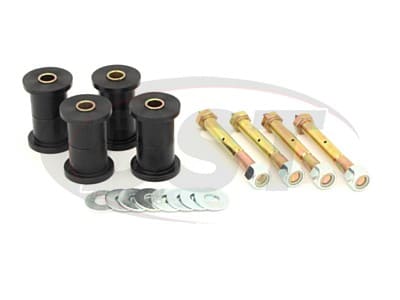

11017 Flange Bushing Kit - 11017 MM: 38.50
INCH: 1-33/64 (1.51)
MM: 19.08
INCH: 0.750
MM: 63.10
INCH: 2-31/64 (2.48)
MM: 76.20
INCH: 3 (3.00)
MM: 14.29
INCH: 9/16 (0.56)

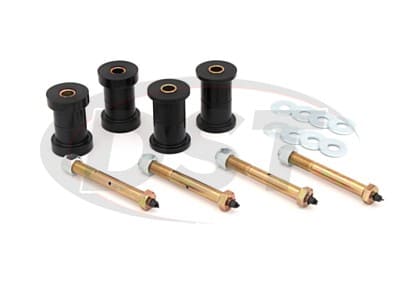

11016 Flange Bushing Kit - 11016 MM: 38.89
INCH: 1-17/32 (1.53)
MM: 19.21
INCH: 0.757
MM: 61.91
INCH: 2-7/16 (2.43)
MM: 76.20
INCH: 3 (3.00)
MM: 14.29
INCH: 9/16 (0.56)
11016 Flange Bushing Kit - 11016 MM: 38.89
INCH: 1-17/32 (1.53)
MM: 19.42
INCH: 0.765
MM: 48.42
INCH: 1-29/32 (1.90)
MM: 73.82
INCH: 2-29/32 (2.90)
MM: 14.29
INCH: 9/16 (0.56)

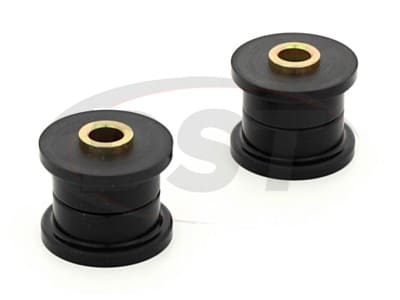

9.9484 Flange Bushing Kit - 9.9484 MM: 44.45
INCH: 1-3/4 (1.75)
MM: 22.22
INCH: 0.875
MM: 34.13
INCH: 1-11/32 (1.34)
MM: 46.83
INCH: 1-27/32 (1.84)
MM: 14.29
INCH: 9/16 (0.56)

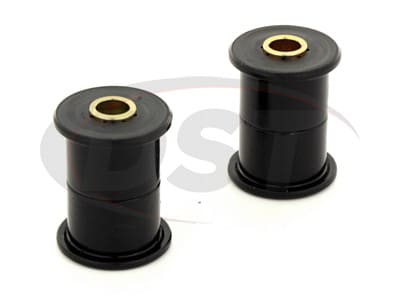

9.9488 Flange Bushing Kit - 9.9488 MM: 44.45
INCH: 1-3/4 (1.75)
MM: 22.22
INCH: 0.875
MM: 65.09
INCH: 2-9/16 (2.56)
MM: 74.61
INCH: 2-15/16 (2.93)
MM: 15.88
INCH: 5/8 (0.62)

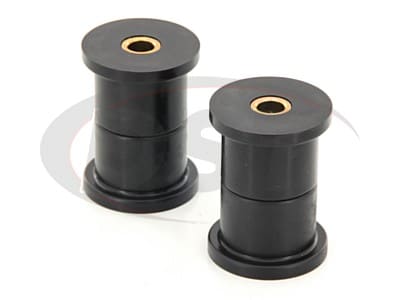

19609 Flange Bushing Kit - 19609 MM: 44.45
INCH: 1-3/4 (1.75)
MM: 19.19
INCH: 0.756
MM: 61.91
INCH: 2-7/16 (2.43)
MM: 76.20
INCH: 3 (3.00)
MM: 12.70
INCH: 1/2 (0.50)

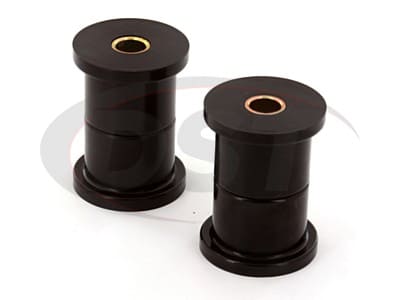

19610 Flange Bushing Kit - 19610 MM: 44.45
INCH: 1-3/4 (1.75)
MM: 19.19
INCH: 0.756
MM: 61.91
INCH: 2-7/16 (2.43)
MM: 76.20
INCH: 3 (3.00)
MM: 14.29
INCH: 9/16 (0.56)

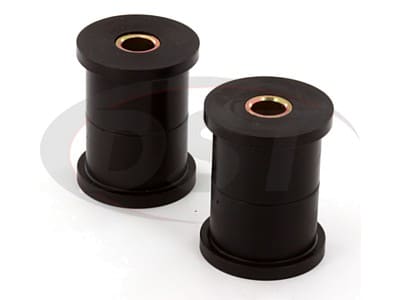

19611 Flange Bushing Kit - 19611 MM: 44.45
INCH: 1-3/4 (1.75)
MM: 19.19
INCH: 0.756
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 76.20
INCH: 3 (3.00)
MM: 15.88
INCH: 5/8 (0.62)

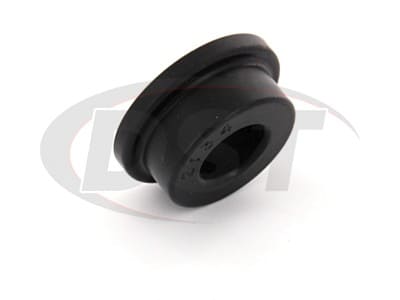

Bulk-2134 Flange Bushing - bulk-2134 MM: 44.49
INCH: 1.75
MM: 22.35
INCH: 0.88
MM: 21.99
INCH: 0.866
MM: 47.76
INCH: 1.88
*When used with 15.10.188.39
MM: 14.34
INCH: 0.565
*When used with 15.10.188.39

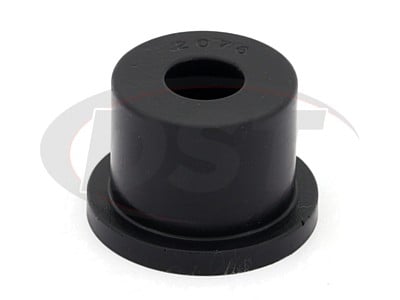

Bulk-2076 Flange Bushing - bulk-2076 MM: 44.61
INCH: 1.756
MM: 18.76
INCH: 0.739
MM: 37.88
INCH: 1.491
MM: 76.2
INCH: 3
*When used with 15.10.08.39
MM: 14.3
INCH: 0.562
*When used with 15.10.08.39

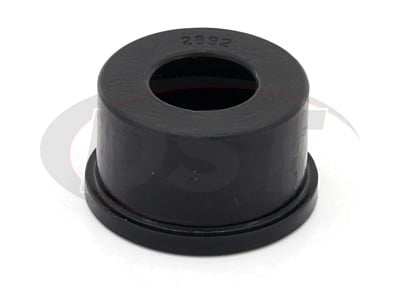

Bulk-2892 Flange Bushing - bulk-2892 MM: 50.63
INCH: 2
MM: 25.68
INCH: 1.011
MM: 32.09
INCH: 1.263
MM: 66.66
INCH: 2.624
*When used with 15.10.568.39
MM: 14.05
INCH: 0.55
*When used with 15.10.568.39

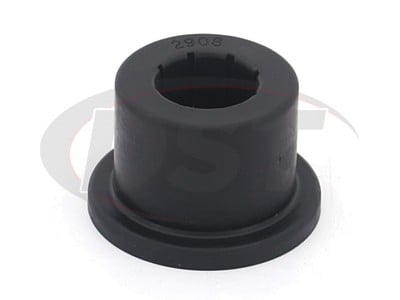

Bulk-2908 Flange Bushing - bulk-2908 MM: 51.765
INCH: 2.038
MM: 28.346
INCH: 1.116
MM: 35.636
INCH: 1.403
MM: 88.9
INCH: 3.5
*When used with 15.10.664.39
MM: 16.256
INCH: 0.64
*When used with 15.10.664.39

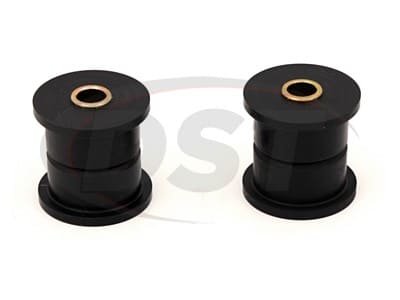

9.9485 Flange Bushing Kit - 9.9485 MM: 51.59
INCH: 2-1/32 (2.04)
MM: 22.22
INCH: 0.875
MM: 52.71
INCH: 2-5/64 (2.075)
MM: 64.26
INCH: 2-7/13 (2.53)
MM: 15.88
INCH: 5/8 (0.62)

polyurethane bushings with kevlar

Kevlar-Infused Polyurethane Bushings

These bushings have Kevlar weaved into a polyurethane blend to provide an even more durable performance bushing with incredible tensile strength while maintaining the comfort level of other aftermarket replacement bushings.

Polyurethane is much more durable than the OE rubber that stock bushings are made of, but even polyurethane has it's limits. In some positions solid metal joints are used to provide the ultimate in performance but you pay for it with much more noise and harshness from your ride. In a track car this is expected, but if you also like to drive your speed machine to work then it can become a little annoying. Off-roading is also demanding when it comes to your suspension and polyurethane is a great way to balance the performance and comfort you want, but is there a way to get even more from your bushings?

kevlar infused polyurethane bushings

Bullet-Proof Bushings

By weaving Kevlar into polyurethane you increase the tensile strength, heat resistance, and tear resistance of a bushing, without increasing the hardness (durometer). These bushings will give you excellent performance by reducing the amount of deflection and keeping the alignment angles of your suspension parts secure. If you're looking for the best balance between daily driver feel and race car performance, along with greater durability, these kevlar infused polyurethane bushings deliver.

...the best balance between daily driver feel and race car performance, along with greater durability

Part Image Outer Diameter (Bushing) Inner Diameter (Bushing) Length (Outer Tube) Length (Inner Sleeve) Fastener Bolt Diameter
DKV001 polyurethane kevlar bushing dkv001 MM: 34.93
INCH: 1-3/8 (1.37)
MM: 22.22
INCH: 0.875
MM: 42.07
INCH: 1-21/32 (1.65)
MM: 57.15
INCH: 2-1/4 (2.25)
MM: 12.70
INCH: 1/2 (0.50)
DKV003 polyurethane kevlar bushing dkv003 MM: 29.37
INCH: 1-5/32 (1.14)
MM: 19.05
INCH: 0.75
MM: 26.19
INCH: 1-1/32 (1.03)
MM: 34.93
INCH: 1-3/8 (1.37)
MM: 14.29
INCH: 9/16 (0.56)
DKV004 polyurethane kevlar bushing dkv004 MM: 38.10
INCH: 1-1/2 (1.50)
MM: 19.35
INCH: 0.752
MM: 50.80
INCH: 2 (2.00)
MM: 63.50
INCH: 2-1/2 (2.50)
MM: 12.70
INCH: 1/2 (0.50)
DKV005 polyurethane kevlar bushing dkv005 MM: 29.37
INCH: 1-5/32 (1.14)
MM: 19.05
INCH: 0.75
MM: 26.99
INCH: 1-1/16 (1.06)
MM: 35.72
INCH: 1-13/32 (1.41)
MM: 12.70
INCH: 1/2 (0.50)
DKV006 polyurethane kevlar bushing dkv006 MM: 31.75
INCH: 1-1/4 (1.25)
MM: 19.05
INCH: 0.75
MM: 33.34
INCH: 1-5/16 (1.31)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 12.70
INCH: 1/2 (0.50)
DKV007 polyurethane kevlar bushing dkv007 MM: 29.37
INCH: 1-5/32 (1.14)
MM: 20.62
INCH: 0.812
MM: 38.10
INCH: 1-1/2 (1.50)
MM: 44.45
INCH: 1-3/4 (1.75)
MM: 15.88
INCH: 5/8 (0.62)

Universal Flex Joints and Flex Joint Bushings

Daystar offers Universal Flex Joints and Flex Joint Bushings in both 2 inches and 2-1/2 inches. We also have most individual components available as well in the kits below.

Image Part Number Part Type Joint Diameter Brand
Daystar Universal Flex Joint Bushings KU70000BK Poly Flex Joint MM: 63.50
INCH: 2-1/2 (2.50)
Daystar
Daystar Universal Flex Joint Bushings KU70001BK Poly Flex Joint MM: 50.80
INCH: 2 (2.00)
Daystar
Daystar Universal Flex Joint Bushings KU70078BK Poly Flex Joint MM: 63.50
INCH: 2-1/2 (2.50)
Daystar
Daystar Universal Flex Joint Bushings KU70079BK Poly Flex Joint MM: 50.80
INCH: 2 (2.00)
Daystar
Daystar Universal Flex Joint Bushings KU70002BK Poly Joint MM: 63.50
INCH: 2-1/2 (2.50)
Daystar
Daystar Universal Flex Joint Bushings KU70004BK Replacement Poly Halves MM: 63.50
INCH: 2-1/2 (2.50)
Daystar
Daystar Universal Flex Joint Bushings KU70005BK Replacement Poly Halves MM: 50.80
INCH: 2 (2.00)
Daystar
Daystar Universal Flex Joint Bushings KU70006BK Replacement Poly Halves MM: 63.50
INCH: 2-1/2 (2.50)
Daystar
Daystar Universal Flex Joint Bushings KU70007BK Replacement Poly Halves MM: 50.80
INCH: 2 (2.00)
Daystar
Daystar Universal Flex Joint Bushings KU70087BK Joint Upgrade Kit MM: 50.80
INCH: 2 (2.00)
Daystar
Daystar Universal Flex Joint Bushings KU70088BK Joint Upgrade Kit MM: 63.50
INCH: 2-1/2 (2.50)
Daystar
Daystar Universal Flex Joint Bushings KU70089BK Poly Bushings with Bolts and Tubing MM: 63.50
INCH: 2-1/2 (2.50)
Daystar
Daystar Universal Flex Joint Bushings KU70090BK Poly Bushings with Bolts and Tubing MM: 50.80
INCH: 2 (2.00)
Daystar
Daystar Universal Flex Joint Bushings KU70091BK Installation Tool N/A Daystar
