unarchive In The Box of 19602 keyboard_arrow_down
- 2 of Metal Sleeves - 60559 (3/4 X .083 X 1.425 (9/16MIN ID) inch)
- 4 of Hat Bushings - 60348 (1 1/8 OD X .750 ID X .680 L inch)
lock Warranty Information keyboard_arrow_down
- Lifetime Warranty. Prothane guarantees all Prothane Suspension Parts to be free of defects in materials and workmanship (not due to abuse, neglect or misapplication) for the total time the vehicle remains with the original purchaser of the product(s). Should the products fail to meet these conditions, Prothane will replace the product, free of charge. This excludes any and all related labor charges. The product must be shipped to Prothane (postage prepaid) along with a copy of the original receipt."

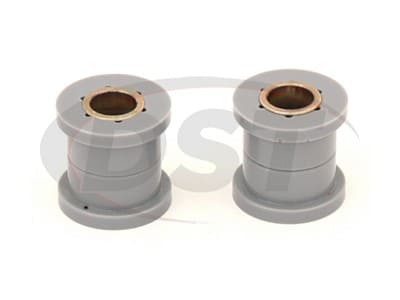

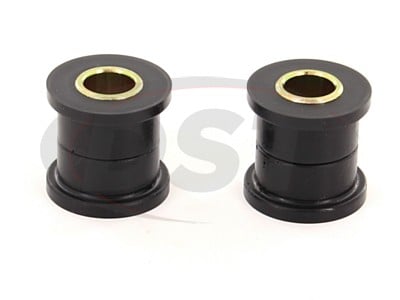

shuffle Cross References 1keyboard_arrow_down
Prothane Universal Flange Type Bushings
If you are in the market for universal flange type polyurethane bushings, you've come to the right place. If you are a fabricator needing a bushing to finish your design, this is the place to be. Or, if you've just come from your vehicle page and are needing a universal bushing, you're where you need to be. Prothane's polyurethane is an excellent material for bushings. Resistant to chemical, oils, and weathering, poly bushings are far more durable than rubber and will outperform any bushing out there. If you are in the market for universal flange type polyurethane bushings, you've come to the right place. If you are a fabricator needing a bushing to finish your design, this is the place to be. Or, if you've just come from your vehicle page and are needing a universal bushing, you're where you need to be. So if you are having an issue finding a bushing for your specific needs, below is information to help you find a matching bushing from Prothane's selection of universal flange type bushings.
How-to obtain the measurements
To obtain the first measurement you'll need to measure the length of the tube where the bushing will actually go inside. So this won't give you the total length of the bushing we need, just the length of the part of the bushing that will be inside the tube. Next, you will need the outer diameter of the bushing. Now, most of you do not have the luxury of measuring the outer diameter of the bushing you will need. But don't worry, you can simply measure the inner diameter of the tube you are working with and that should give you the diameter of the bushing you need.
Now the Length, or Sleeve length, will be the total length of the bushing you need including the flange. So measure the total length of the inner sleeve that your OE bushing has. If you don't have the OE sleeve that's okay. Just make sure you have the proper Bolt size for the sleeve to match your OE bolt size. If you don't have the bolts either, you'll be making a trip to the hardware store to get a bolt that matches the sleeve that comes with your universal bushings. If you have each measurement matched, but the bushing is too long, you can cut them down to match your needs. Once you have these measurements you verify that this part will work for your application. If you find that this bushing will not match your measurements, you can go to our Universal Bushing Page to find a bushing that matches your measurements.
What Exactly Am I Getting?
This part number will come with four half bushings and two steel inner sleeves, making two complete bushings. These bushings will have a durometer of 95A so they will be strong enough for the toughest of applications. Your best bet is to find a bushing that is either the exact measurement or slightly bigger so it will fit snug. And by slightly bigger I do mean slightly, no more than half a millimeter. Any bigger and it would probably be too big for your tube. Using a split design, Prothane has made this universal for an easy install. Simply put one half of the bushing on one side, the other half on the other side, and slide your steel sleeve through.
Product Reviews for Universal Flange Bushing | 19602
- 5 Star (6)
- 4 Star (0)
- 3 Star (0)
- 2 Star (0)
- 1 Star (0)
starstarstarstarstar" I had the red bushings because they are more firm. "
Everything worked out fine. No problems!verified_user Verified Buyer - Ed Towle - . Prothane 19602 - 5 out of 5
starstarstarstarstar" Great "
Great quality, easy to install.verified_user Verified Buyer - Gerald Johns - . Prothane 19602 - 5 out of 5
starstarstarstarstar" Well constructed "
No one else had this bushing to fit my 96 Ford Bronco. This guy ask the size I needed and in about 15 minutes they had it on its way to meverified_user Verified Buyer - John Earl Farmer - . Prothane 19602 - 5 out of 5
starstarstarstarstar" Great quality for the price "
There was no problem with installing them. I really like the added stiffness in the rear end of the car. I recommend these products and Energysuspensionparts.com for all bushings. Even if you live in Canada.verified_user Verified Buyer - Jean-Christophe Berube - . Prothane 19602 - 5 out of 5
